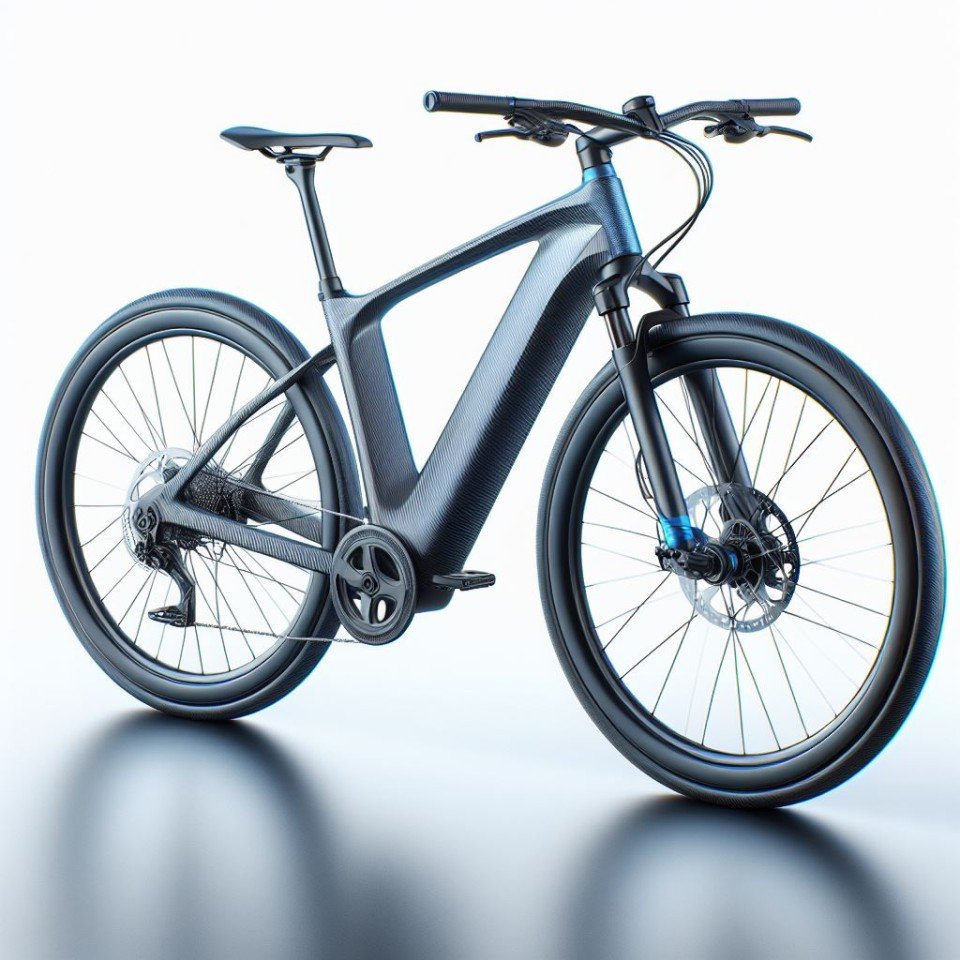

Ebike Geometry

E-bike geometry, much like traditional bicycle geometry, plays a crucial role in determining the bike's handling, comfort, and overall riding experience. However, e-bikes have unique characteristics that influence their geometry. Understanding these nuances can help you choose an e-bike that suits your needs and preferences.

Key Aspects of E-Bike Geometry:1. Frame Size:

• Similar to traditional bikes, frame size is vital for fit. E-bikes, however, often have bulkier frames to accommodate the motor and battery.

2. Top Tube Length:

• This influences your reach to the handlebars. E-bikes might have slightly different top tube lengths to balance the bike's weight distribution.

3. Head Tube Angle:

• E-bikes, especially mountain e-bikes, tend to have a slacker head tube angle for stability, given the additional weight and higher average speeds.

4. Seat Tube Angle:

• Steeper angles are common in e-bikes to help position the rider efficiently for pedaling, especially considering the extra weight they're propelling.

5. Chainstay Length:

• E-bikes might have longer chainstays to accommodate the motor and improve stability, particularly for cargo e-bikes or those designed for touring.

6. Wheelbase:

• E-bikes often have a longer wheelbase for stability, important due to the higher speeds and weight.

7. Bottom Bracket Height:

• It might be adjusted to lower the center of gravity, enhancing stability, which is crucial for heavier e-bikes.

8. Fork Rake (Offset):

• Adjusted to handle the additional weight, especially on the front wheel if the motor is located there.

9. Standover Height:

• E-bikes should have a comfortable standover height, considering the additional weight you might have to manage when stopping and starting.

E-Bike Specific Considerations:

• Motor and Battery Placement: This affects the bike's center of gravity. Mid-drive motors centralize weight, while hub motors affect weight distribution towards either the front or rear.
• Weight: E-bikes are heavier due to the motor and battery. This extra weight impacts handling, making stability a key aspect of e-bike geometry.
• Stiffness: E-bikes often require stiffer frames to handle the additional forces from the motor and weight, influencing the overall geometry.
• Tire Size and Clearance: E-bikes might feature wider tires for better traction and to support the extra weight, which can impact frame design and geometry.
• Suspension: For e-mountain bikes, robust suspension systems are essential due to the increased weight and potential for higher-speed off-road riding.

Choosing the Right E-Bike Geometry:

• Riding Style: Consider whether you'll be using the e-bike for urban commuting, mountain biking, touring, or casual rides. Each style may have different geometry needs.
• Comfort vs. Performance: More aggressive, performance-oriented e-bikes have different geometry compared to comfort-oriented models.
• Test Ride: Given the nuances in weight distribution and handling, test riding different e-bikes is crucial to understand how the geometry feels for you.

Conclusion:

E-bike geometry must account for the additional weight and power dynamics of the electric drive system. When selecting an e-bike, it's important to consider how these factors influence the bike's stability, handling, and comfort. As with traditional bikes, getting professionally fitted can ensure the best possible match for your body and riding style.
